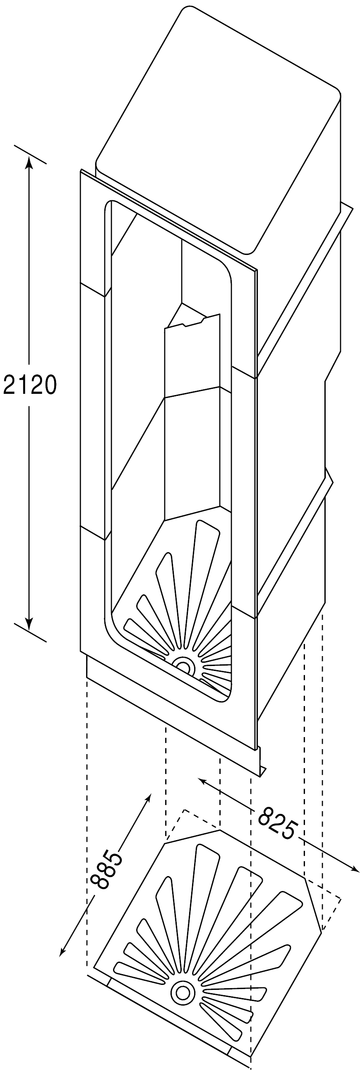

Measurements for the 650C / 750C (Curtain Model)
Cabinets are supplied with adjustable feet to assist levelling.
Optional extension legs are available for bolting to the underside of the shower. This allows for an 80mm water seal waste trap to be installed below the shower but above floor level.
Please click here for information about the optional Leg Pack
Side Panel Pack (900 SD and SC models only)
This unit can either be built in or fitted using the side panel pack as a substitute for a wall.
Please click here for information about the optional Side Panel Pack
Optional floor level access panels are available to neatly close the gap below the shower when installed on legs. These come complete with fixing brackets.
Waste traps can be supplied by us to complement the various model options.
Extractor fans, lighting, grab rails and seats can also be fitted within the shower pods. These items are available from most builders’ merchants.
CAD drawings and in PDF and DWG format for the 650C / 750C
